OBS

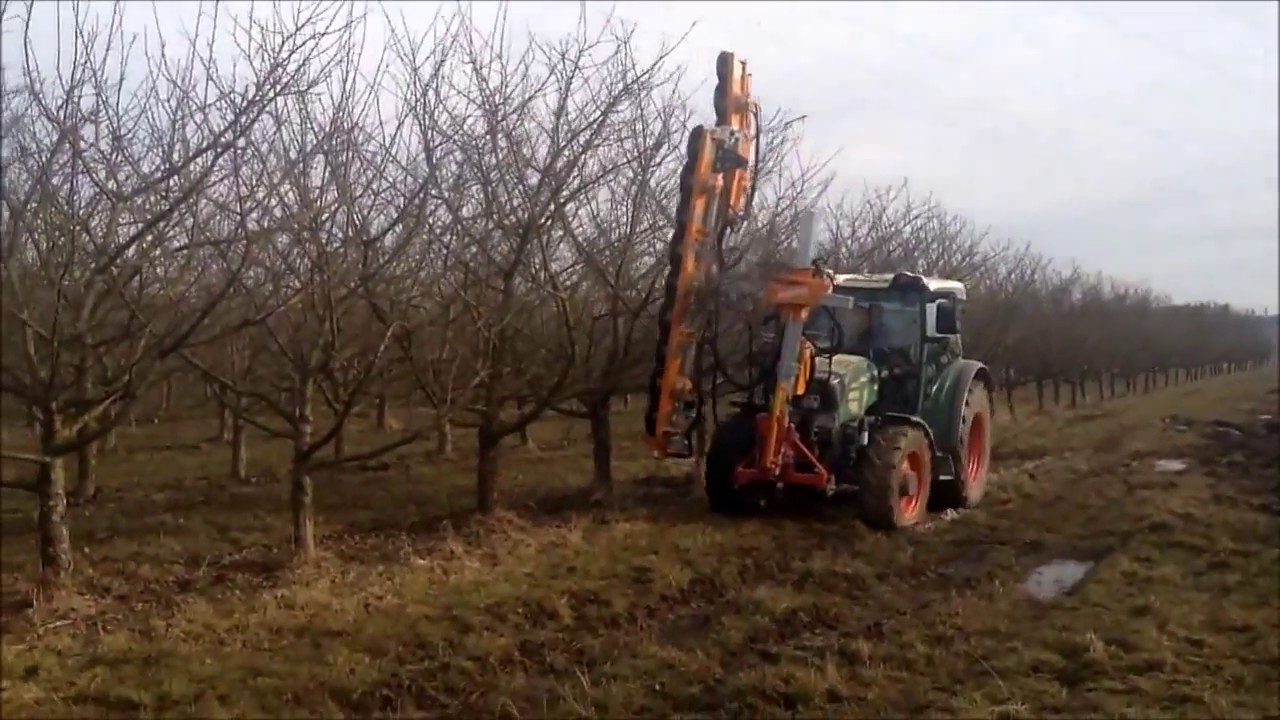

BINGER – Orchard Trimmer Typ. OBS
Standard Equipment:
- Hydraulic height adjustment 600 mm
- Hydraulic shift 400 mm
- Hydraulic lateral inclination + 27o
- 50ο hydraulic cutting angle adjustment on shift
- Joystick control (6 x double acting)
- Storage frame
Technical specifications:
- Vertical cutting bar with 9 discs, Cutting Length 9 discs: 2800mm
- Vertical cutting bar with 6 discs, Cutting Length 9 discs: 1900mm
- Upper horizontal cutting bar with 3 discs, Cutting Length 3 discs: 1000 mm
- Lower horizontal cutting bar with 1 disc, Cutting Length 1 disc: 400 mm
- Branch diameter Φ 100-120 mm
- Diameter of disc Φ 400 mm
- Oil requirement: 28 l/min
- Required controls of tractor: 1 x single acting (s-a)
| ΤΥPE |
|---|
| OBS 1-9-3 (cutting: 2800x1000x400 mm) |
| OBS 1-6-3 (cutting: 1900x1000x400 mm) |
Options:
- Tractor bracket
- Hydraulic backing
- Oil cooler
